Rolling Shutters and Rolling Grilles

Rolling Shutters & Rolling Grilles –economical, sturdy and reliable

Order catalog

Discover more catalogs

Order for free now
Sus­tain­ab­il­ity Sus­tain­ab­il­ity
CO₂-neutral products

We offer all garage doors, operators, entrance doors, internal doors, steel frames, steel doors for residential construction and storage systems as CO2-neutral products as standard at no extra charge. All industrial doors, operators, loading technology, construction project doors and perimeter protection systems are also available as CO2-neutral products upon request for an additional charge. Learn more about our sustainability strategy.

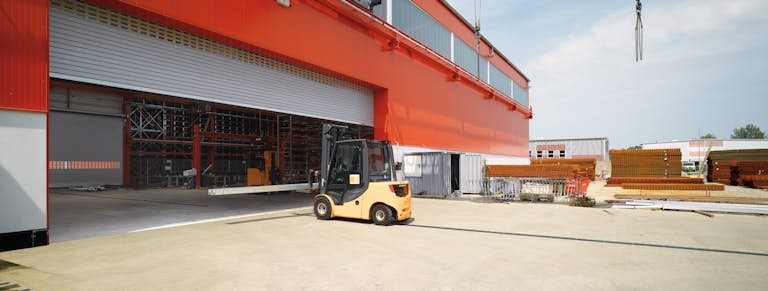

Thanks to an ingeniously simple construction with just a few components, Hörmann aluminium and steel rolling shutters and rolling grilles are especially economical. These doors prove themselves in daily use again and again. Rolling shutters and rolling grilles require very little headroom above the structural opening. They roll up compactly behind the lintel. No valuable hall space is lost at the sides or ceiling.

Hörmann’s high degree of specialisation in rolling shutter and rolling grille construction goes far beyond normal standards. For our committed and experienced team, implementing special solutions is part of their daily routine.

The rolling grille RollMatic with its compact design with a max. required headroom or fitting depth of 335 mm is the ideal solution for store grilles in confined spaces.

Doors sometimes take up a large portion of commercial buildings. They thus offer substantial energy savings potential – for more information about the amortisation and retrofitting see the Hörmann energy savings compass.

Rolling grilles from Hörmann

Your reliable and robust closure

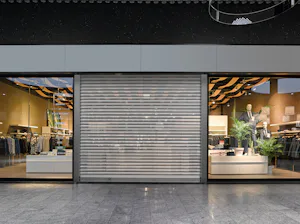

Hörmann rolling grilles are made of robust steel or aluminium bars and are particularly suitable for use in industrial and commercial buildings. Rolling grilles are often used as shop doors in shopping centers, stadiums or airports and protect shops and restaurants from unauthorized access. Used as door closures, rolling grilles control access to and from underground and collective garages and provide natural ventilation.

Hörmann rolling grilles are particularly space-saving and therefore also suitable for fitting situations with limited space. The flexible grille curtain winds compactly onto a shaft in the lintel with the help of the side booms, so that the rolling grille takes up hardly any space in the side and ceiling areas.

CONTACT US NOW

Good reasons to try Hörmann rolling shutters and rolling grilles

All advantages at a glance

We think and act green

As a family business, we are very conscious of our responsibility to future generations and offer all industrial doors, operators, loading technology, construction project doors and perimeter protection systems for construction projects CO2-neutral upon request. The Hörmann climate protection strategy aims to reduce and avoid CO2 emissions. We cover 100% of our electrical power needs at all European production locations with purchased green electricity.
We also apply many other measures to reduce our consumption and save more than 75000 tonnes of CO2 each year. We work with ClimatePartner to offset the emissions that we do generate by supporting certified climate protection projects.

Innovativ dragfjäderteknik

Innovative tension spring technology

Safe and proven

Manual door opening and closing is facilitated significantly by the tension spring assembly. SB rolling shutters and rolling grilles up to 6000 × 4500 mm can be moved with little force. For rolling shutters / rolling grilles with an optional operator, the tension spring assembly reduces wear on the mechanical door elements and operator technology.

Operational safety through power limit

Operational safety through power limit

As standard with WA 300 R S4

In combination with a WA 300 R S4 operator, the SB and TGT rolling shutters / rolling grilles are characterised by a high level of safety when opening and closing. Thanks to the standard power limit in the “Open” and “Close” directions, most curtain variants and size ranges do not require the installation of a closing edge safety device to meet the requirements of DIN EN 12453.

Roller garage doors for the highest wind load class

Thanks to the wind locks W4 and reinforced booms, our roller garage door DD with door curtain Decotherm S meets the highest performance characteristics of wind load class 4, even with a door width of up to 12 metres or a door height of up to 9 metres. Designed specifically for roller garage doors exposed to extremely high wind speeds, such as on mountain stations or in coastal regions.
