Sliding Gates

Industrial Sliding Gates – high security standards, completely pre-assembled

Order catalog

Discover more catalogs

Order for free now

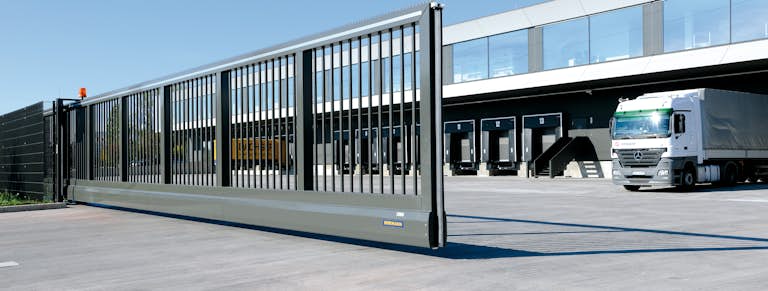

Hörmann sliding gates are constructed from stable steel profiles, ensuring a strong, durable build. The sliding gates are delivered as a complete package, with an opening width of up to 16 metres; a 2-element variation is also available, which will allow you to create an opening width of 32 metres. This will be wide enough to accommodate the largest vehicles and goods, creating an effective and streamlined transportation route into and out of your company premises.

The construction itself is self-supporting, meaning very little foundation work is required. No guide rail is used, eliminating the risk of malfunctions caused by ice, snow, or heavy soiling.

The gates will be pre-tensioned, which allows the height of the front edge to be retroactively corrected so that the gate leaf is always precisely positioned in the entrance. This means that the gate is always optimally aligned, allowing for smooth, effective operation each time the gate is used.

A soft-start function is integrated as standard in all door variants for impulse control with soft door start-up – this protects the door and operator components.

Good reasons to try Hörmann sliding gates

All advantages at a glance

We think and act green

As a family business, we are very conscious of our responsibility to future generations and offer all industrial doors, operators, loading technology, construction project doors and perimeter protection systems for construction projects CO2-neutral upon request. The Hörmann climate protection strategy aims to reduce and avoid CO2 emissions. We cover 100% of our electrical power needs at all European production locations with purchased green electricity.
We also apply many other measures to reduce our consumption and save more than 75000 tonnes of CO2 each year. We work with ClimatePartner to offset the emissions that we do generate by supporting certified climate protection projects.

Additional aluminium guide rollers

Additional aluminium guide rollers*

Aluminium guide rollers* are attached on the top edge of the gate leaf on both sides of the gate, preventing direct contact between the track rollers and the high-quality gate coating. This preserves the gate’s attractive look.
* Included in the scope of delivery with type HS, optionally available with type HSS/HS Alu.

Safe automatic control

Safe automatic control

Five self-monitoring closing edge safety devices stop the gate instantly – even on encountering the slightest resistance. This ensures the highest safety for persons and vehicles.

Safe control electronics

Safe control electronics

The electronic control system is integrated into the post. It is located on the yard side. To carry out maintenance or adjustment work, the front flap must only be unlocked. An individually coded hand transmitter makes opening the sliding gate from the vehicle especially convenient for the drivers in your company vehicle fleet. This is a great advantage for frequently used gates.

A powerful electronic system for all control functions

  • Contact strip evaluation
  • Radio control
  • Card reader system
  • Automatic timed opening / closing
  • Induction loops
  • Photocells
  • Display: Open, Close, Gate travelling
